M12 8 Pin Assembled Cable Connector

Part Number:
M12-A-M-FW-ST-MS-8P-SD


Keywords:
M12 8 Pin Assembled Cable Connector

Description:
FLECONN can provide M12 8-pin assembled cable connectors for automation equipment manufacturers.

General Description:
Connector Series: M12. Gender: male. Coding: A-Coded. Contacts : 8 pos. Cable outlet: PG7-PG9. Wiring method: solder terminals. Enclosure Shape: Straight


I-PEX
Click here to enlarge



Product Description

M12 8 Pin Assembled Cable Connector

FLECONN can provide M12 8-pin assembled cable connectors for automation equipment manufacturers.

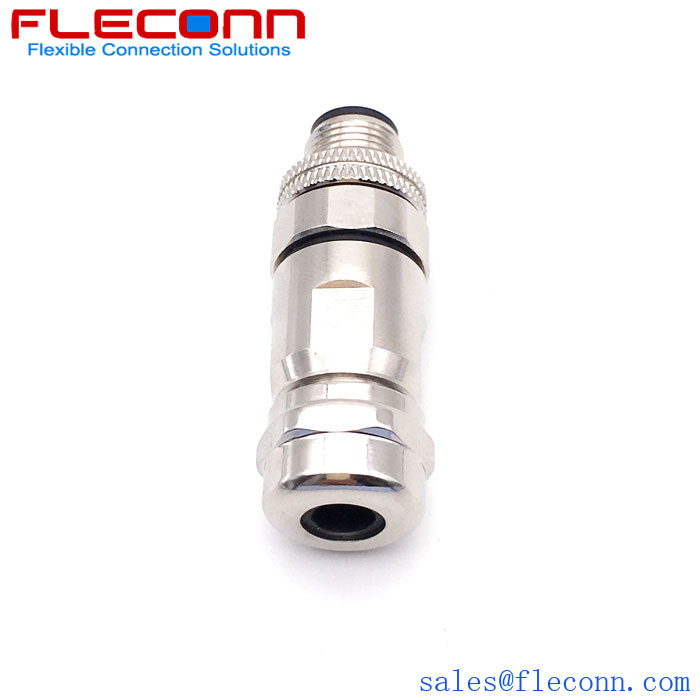

M12 8 Pin male Connector in the company of FLECONN China


1. The product Features for M12 8 Pin Assembled Cable Connector

Connector Series: M12.

Gender: M ale.

Coding: A-Coded.

Contacts: 8 pin.

Shieding: Metal shell shielding

2. The Mechanical and Electrical Characters for M12 8 Pin Assembled Cable Connector

Connector locking system:screw thread

crewing Wire gauge (mm)0.75 mm²

Wire gauge (AWG)18

Cable outlet 4 - 6 mm

Degree of protectionIP67

Mechanical operation> 100 mating cycles

Upper temperature85 °C Lower temperature-40 °C

Rated voltage250 V

Rated impulse voltage2500 V

Pollution degree

Overvoltage categoryII

Material groupIII

Rated current (40°C)4 A

Volume resistivity≤ 3 mΩ (Gold)

Material of contactCuZn (Brass)

Contact platingCuSnZn (Optaloy)


4. Other connectors similar with the shielded m12 4 pin male connector.
